Elo 2244L

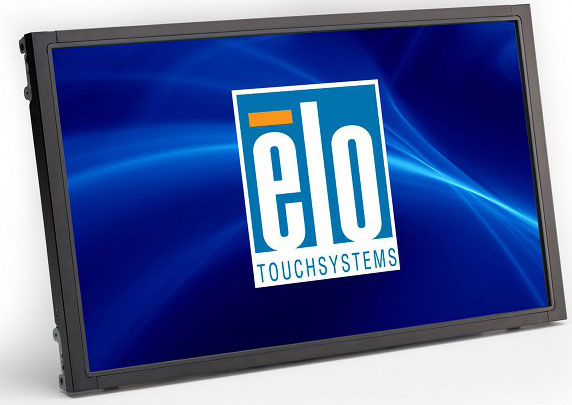

The Elo Touch Solutions 2244L open-frame LCD touchmonitor with its slim design and narrow outside dimensions gives kiosk integrators an edge in developing the most aesthetically pleasing products. Wide-aspect displays like the Elo 2244L are easier to use and incorporate than traditional open-frame touchmonitors. Wide-screen format displays allow extra content on the screen and are quickly becoming preferred in casino gaming, amusement and entertainment settings and are increasingly popular in public venue environments due to the high-definition cinematic-like experience. Typical applications for the 2244L include: gaming and amusement, information kiosks and self-service, as well as interactive digital signage applications.

State-of-the-art LED backlighting used in the 2244L makes the panel thinner overall as the cold cathode fluorescent lights (CCFL) are replaced with LED lights. LED lights also take less electricity to operate and generate less heat. This leads to the slimmer dimensions of the 2244L that facilitate OEMs and system integrators the flexibility to design aesthetically pleasing and stylish kiosks.

Available with IntelliTouch or IntelliTouch Plus surface acoustic wave or true-flat projected capacitive touchscreen technology, the 2244L provides stable "drift-free" operation with outstanding image clarity, resolution, and light transmission - for an accurate touch response and vivid images. Projected capacitive provides a durable, zero-bezel, glass-to-edge surface with multi-touch, while IntelliTouch is the optical standard of touch and widely used in kiosk and gaming applications. Both are pure glass constructions to deliver a clear, bright and long-lasting performance and it also makes the touchscreens scratch-resistant. It is nearly impossible to physically "wear out" these touchscreens.

Specifications

Model 2244L
Display 21.5" diagonal
Aspect ratio 16:9, active matrix TFT LCD with LED backlighting
Useful screen area Horizontal: 18.7" (475 mm)
Vertical: 10.5" (267 mm)
Monitor dimensions Width: 20.2" (512 mm)
Height: 11.7" (298 mm)
Depth: 1.7" (43 mm)

See dimensional drawings for details
Native (optimal) resolution 1920x1080
Other supported resolutions 640x480 60Hz
720x576 50Hz
800x600 56, 60Hz
1024x768 60Hz
1280x720 50, 0Hz
1280x960 60Hz
1280x1024 60Hz
1366x768 60Hz
1440x900 60Hz
1680x1050 60Hz
1920x1080 50, 60Hz
Colors 16.7 million
Brightness (typical) LCD panel: 250 nits
IntelliTouch: 225 nits
IntelliTouch Plus: 225 nits
PCAP: 225 nits
Response time - total (typical) 14 msec
Viewing angle (typical) Horizontal: ±89° or 178° total
Vertical: ±89° or 178° total
Contrast ratio (typical) 1000:01:00
On-screen display (OSD) Controls: Menu, Up, Down, Select
Settings: Brightness, Contrast, Clock, Phase, H-position, V-position, Auto-Adjust, Aspect Ratio, Sharpness, Color Temperature, OSD Timeout, OSD Language, OSD H-Position, OSD V-Position, Recall Defaults, Video Source
Languages: English, French, Italian, German, Spanish, Simplified Chinese, Traditional Chinese, Japanese
Lockouts: OSD, Power
Accessible through switches on the unit's tethered OSD Control Box.
Input video format Analog VGA, DVI-D
Input video signal connector Analog VGA on Female DE-15 connector; Digital on Female DVI-D connector
Input frequency Horizontal: 31.5-80 kHz
Vertical: 50-75 Hz
Power supply External DC - Optional power brick (sold separately)

Input power connector specification (Monitor)
Type: DC Barrel Jack
Barrel inner diameter: 6.4mm (+/- 0.3mm)
Pin outer diameter: 2.0mm (+0.0 -0.1mm)
Input voltage range: +12VDC ±5%

Input power connector specification (Power brick)
Type: IEC 60320 C14
Adapter input voltage range: 100-240VAC, 50/60Hz
Power consumption (typical) ON (monitor only): 26W
ON (monitor + AC/DC adapter at 230V/50Hz): 39W
SLEEP (monitor + AC/DC adapter at 230V/50Hz): 1.5W
OFF (monitor + AC/DC adapter at 230V/50Hz): 1.0W
Shipping Box Dimensions (W x D x H) 7.87" (200 mm) x 24.41" (620 mm) x 16.93" (430 mm)
Weight Actual: 10.6 lb (4.8 kg)
Shipping: 15.3 lb (7.0 kg)
Temperature Operating: 0°C to 40°C (32°F to 104°F)
Storage: -20°C to 60°C (-4°F to 140°F)
Humidity (noncondensing) Operating: 20%-80%
Storage: 10%-90%
Enclosure Color Black
Form factor Open-frame
MTBF 50,000 hours demonstrated
Mounting options VESA 4-hole 100mm mounting interface on rear of unit
2-hole mounting interface on all 4 sides

See dimensional drawings for details

Part Number

Technology Interface Input Video Format Surface Treatment Part # (RoHS
Compliant)
Availability
IntelliTouch Plus USB DVI/Analog VGA Clear E056050 Worldwide
IntelliTouch USB DVI/Analog VGA Clear E469590 Worldwide
Projected Capacitive USB DVI/Analog VGA Clear E485927 Worldwide
