Elo 1919LM

stolní 19" LCD 16:9 medic touchmonitor

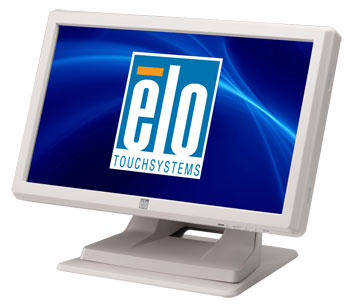

1919LM 19-inch Touchmonitor

The fully featured 1919LM touchmonitor offers best-in-class optical performance mated to leading touch technologies -IntelliTouch surface acoustic wave and AccuTouch five-wire resistive -in addition to a combination USB and serial touch controller, DVI, VGA and built-in speakers. The monitor is available in white, touch and non-touch enabled versions.

The 1919LM is compliant with multiple safety and electrical certifications including EN 60950-1 and EN60601-1 for safety and EN 60950-1, EN55022, EN55024, and EN 60601-1-2 for EMC. In addition, the 1919LM is RoHS compliant, and includes an enclosure design that is resistant to dripping water with an IPX1 rating, protecting the unit from liquid drops and spills. As a result the 1919LM is an excellent fit for a wide variety of settings, including healthcare.

The Elo 1919LM touchmonitor is an effective solution for System Integrators, Value-Added Resellers and Software Developers to consider integrating into their healthcare applications such as nursing stations, computer-aided therapy, electronic medical record keeping, paperless charting, patient self check-in / registration or point–of-information installations, as well as non-medical applications that benefit from DVI-D input, speakers and a pristine image display.

Press release Compare Elo touchmonitors .

Features

Specification

Model 1919LM
Display 18.5" diagonal, Active matrix TFT LCD
Aspect Ratio 16:9
Useful Screen Area Horizontal: 16.1" (410 mm)
Vertical: 9.1" (230 mm)
Native (Optimal) Resolution 1366 x 768
Other Supported Resolutions 720 x 350 at 70Hz
720 x 400 at 70Hz
640 x 480 at 60, 72, 75Hz
800 x 600 at 56, 60, 72, 75Hz
832 x 624 at 75Hz
1024 x 768 at 60, 70, 75Hz
1280 x 800 at 60Hz
1280 x 960 at 60Hz
1280 x 1024 at 60, 75Hz
1360 x 768 at 60Hz
1366 x 768 at 60Hz
1440 x 900 at 60Hz
1600 x 1200 at 60Hz
1680 x 1050 at 60Hz
Colors 16.7 million
Brightness
(Typical)
LCD panel: 300 nits
Acoustic Pulse Recognition (APR): 270 nits
AccuTouch: 240 nits
IntelliTouch: 270 nits
Response Time - Total (Typical) 5 msec
Viewing Angle Help on this topic
(Typical)
Horizontal: ±85° or 170° total
Vertical: ±80° or 160° total
Contrast Ratio (Typical) 1000:1
On-Screen Display (OSD) Controls:Menu, Up, Down, Select
Settings: Brightness, Contrast, Phase, Clock, H-Position, VPosition, Auto-Adjust, Maintain Aspect Ratio, Sharpness, Video Source, Color Temperature, OSD Timeout, OSD Language, OSD Rotation, Volume, Mute, Recall Defaults
Languages: English, French, Italian, German, Spanish, Simplified Chinese, Traditional Chinese,Japanese
Lockouts: OSD, Power Accessible through switches on the bottom.
Input Video Analog VGA on Female DE-15 connector
Digital DVI on Female DVI-D connector
Horizontal Sync Frequency Range: 30-83KHz
Vertical Sync Frequency Range: 50-75 Hz
Power Supply DC (external power adapter included with unit)
Input Voltage AC/DC Adapter: 100-240 VAC, 50/60 Hz
Monitor: +12VDC ±5%
Input Connector AC/DC Adapter:IEC 60320 C14
Monitor: Coaxial power jack (2 mm pin diameter, 6.4 mm barrel diameter, 8.8 mm barrel length)
Power Consumption (Typical) 21.8W (monitor and AC/DC adapter)
Speakers Two 2W internal speakers
Audio input connector 3.5mm TRS jack
Headphone output connector Two 3.5mm TRS jacks
Monitor Dimensions (with Stand) Width: 13.8" (350 mm)
Height: 12.2" (310 mm)
Depth: 6.9" (175 mm)
Dimensions vary with stand position and options selected
Shipping Box Dimensions Width: 22.44" (570 mm)
Height: 14.96" (415 mm)
Depth: 8.86" (225 mm)
Weight Actual: 15.2 lb (6.9 kg)
Shipping: 21.6 lb (9.8 kg)
Temperature Operating: 0°C to 40°C (32°F to 104°F)
Storage: -20°C to 60°C (-4°F to 140°F)
Humidity (non-condensing) Operating: 20%-80%
Storage10%-90%
Form Factor Desktop
Enclosure Color White
Backlight Lamp Life Typical 50,000 hours to half brightness
MTBF 50,000 hours demonstrated
Stand Options Tiltable and removable
Mounting Options 100 mm VESA mount
Interface on rear of unit; 4-hole mounting interface on stand baseplate.
Sealing Touchscreen sealed to bezel
Touchscreen sealed to LCD
Other Features Security lock receptacle

MTBF (Mean Time Between Failures)

An MTBF measurement is based on a statistical sample and is not intended to predict any one specific unit's reliability; thus MTBF is not, and should not be construed as, a warranty measurement.

Accessories

Cable Kit for Replacement Cables: Part number E378229, available at additional cost.

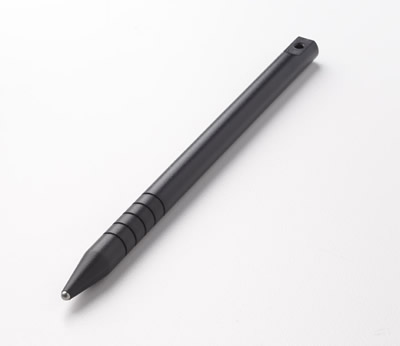

APR Stylus PenOptional Acoustic Pulse Recognition (APR) Stylus Pen: Stylus pen with metal tip, designed specifically for use with Acoustic Pulse Recognition (APR) technology. Part number E963860, available at additional cost.

IntelliTouch Stylus Pen Optional IntelliTouch/iTouch Stylus Pen: Stylus pen with rubber tip, designed specifically for use with IntelliTouch or iTouch surface wave touch technology. Part number D82064-000, available at additional cost.

Replacement Medical Power Brick Kits:

  • United States: part number E179789
  • Europe: part number E050243
  • United Kingdom: part number E287753
  • Japan: part number E970286

Optional Stand:(White): Part number E99099, available at additional cost.

Touch/Video Cables: Detachable touch and video cables are included.

Technology Interface Surface Treatment Part #
(RoHS Compliant)
AccuTouch Dual serial/USB Antiglare E707679
IntelliTouch Dual serial/USB Antiglare E313190
Acoustic Pulse Recognition Dual serial/USB Antiglare E660283

Warranty, Service and Certifications

Warranty 3 years
Optional Product Coverage Advance Unit Replacement program (North America only)
Extended Warranty(North America and EMEA only)
MTBF 50,000 hours demonstrated
Agency Approvals Help on this topic

North America: USA UL 60601-1 1st edition (medical), CSA C22.2 No. 60601-1 (medical), USA FCC CFR 47 Part 18 Subpart B (medical), UL 60950, CSA C22.2 No. 60950-1-03, Mexico NOM, FCC, ICES

EMEA:Europe IEC/EN 60601-1:1988+A1+A2 2nd Edition (medical), Europe IEC/EN 60601-1-2:2005, IEC/EN 55011 (medical), Europe IEC/EN 60950-1 including all CB scheme member country deviations, C-tick, CE mark

Japan: VCCI

South America: Argentina S-mark

MTBF (Mean Time Between Failures)

An MTBF measurement is based on a statistical sample and is not intended to predict any one specific unit's reliability; thus MTBF is not, and should not be construed as, a warranty measurement.
